Eurobond Roofspan Panel

Category:

Description

Eurobond Roof Span Panel

The fire-rated Eurobond Roof span panel presents superior fire resistance, while offering efficient energy and acoustic protection.The trapezoidal roof span panel is a composite panel which is produced with a high density, non-combustable, stone wool core providing added fire resistance to fulfil fire and life safety requirements.

Providing high-grade acoustic, fire and energy solutions, when used in conjunction with a Eurobond wall panel – the eurobond Roofspan brings an eco-friendly and green, low fire risk, building material.

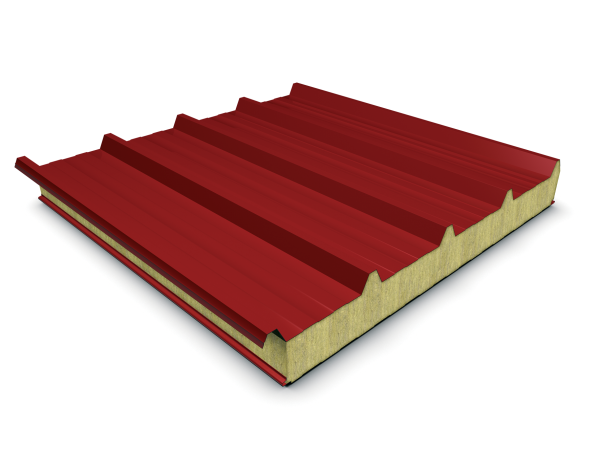

The eurobond roof span panel is a fire rated stone wool composite panel with trapezoidal metal outer sheet and metal liner.

The panels are 37.250.1000 profile, and can be applied to roofs with a minimum of 5 degree pitch after deflection.

Standard Specification

  • 1000mm module width
  • Lengths available from 2,500mm to 14,000mm
  • Trapezoidal metal outer sheet 37.250.1000 profile
  • S280GD steel sheet, outside: 0.70mm / inside: 0.50 mm
  • Available in TATA Prisma and TATA HPS200 Ultra finishes offering up to 40 years Confidex guarantee
  • End lap available in 80mm-280mm. MCRMA recommends 150mm.
  • Non-Combustible high density mineral wool core – 100kg/m³
  • Stone wool core offers 0.044 W/mK thermal conductivity
  • CE-marked to EN 14509
  • Reaction to Fire, Euroclass A2,s1-d0 according to EN 13501-1

Downloads

Roofspan PDS_April 2019_iss7
